Forensic finger and palmprint enrollment workstation

The forensic finger and palmprint enrollment workstation can be applied both as a desktop and as a mobile unit.

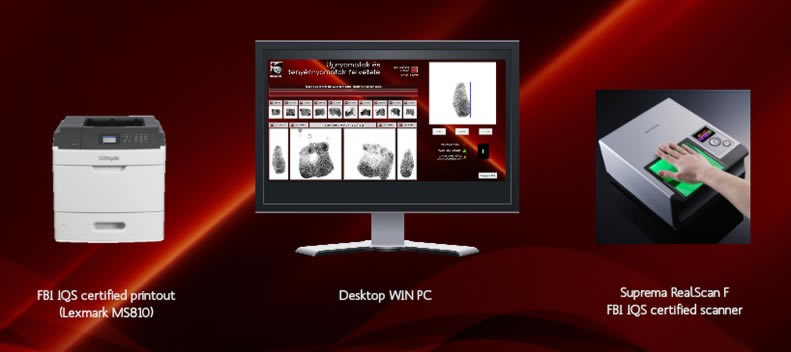

HW/SW CONFIGURATION

IBM compatible PC
  • Notebook, or desktop PC
  • WIN 7/8 operating system
  • WIFI, Ethernet, 4 USB port
  • foot switch

Printer
  • FBI APP F certified laser printer (Lexmark MS810n)

Live scanner
  • FBI APPENDIX F certification
  • rolled fingerprints
  • 4-4-1-1 slap
  • palm and writer's palm enrollment

SOFTWARE

Fingerprint enrollment
  • 1.5*1.5 inch
  • 10 rolled fingerprint
  • 2 thumbs
  • 2*4 slap

Palmprint enrollment
  • left and right palm
  • left and right writer's palm

Card printing
  • TP card printing
  • right hand (palm and writer's palm)
  • left hand (palm and writer's palm)
  • A tenyérnyomat lapokon a megfelelő kéz mutatóujja is szerepel
  • Barcode on all cards

EXTENDED QUALITY ASSURANCE



Quality assurance #1
  • management of missing/bandaged/unprintable fingers
  • control of finger order
  • detection of hands exchange
  • NFIQ quality classification
Quality assurance #2
  • slip detection
  • lifting detection
  • rolling control (shift)
Quality assurance #3
  • automatic rolling direction
  • automatic finger detection and start of enrollment
  • automatic end of enrollment
  • tenyérfelvétel esetén lehetőség van a felvétel manuális indítására (lábpedállal)
QUALITY CERTIFICATES


  • Fingerprint reader:: FBI APPENDIX F certification
  • Printing: FBI APPENDIX F certification
  • Image compression: FBI WSQ Certification

STANDARDS


  • ANSI/NIST-ITL 1-2007
  • FBI EBTS 9.1 implementation
  • ORFK implementation (type2)

TRANSACTIONS

  • CAR, ATP, MAP, TPIS, SRE, ERR


STEPS OF THE CARD ENROLLMENT

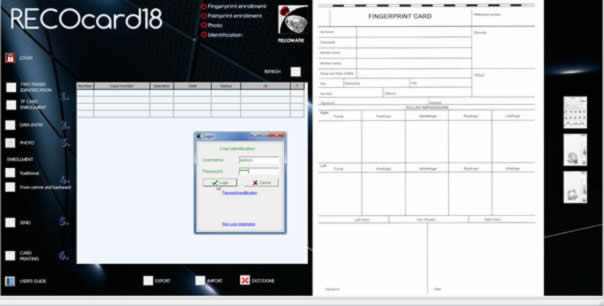

Login screen:

  • tenprint card and photo enrollment

or

  • 2 fingers identification

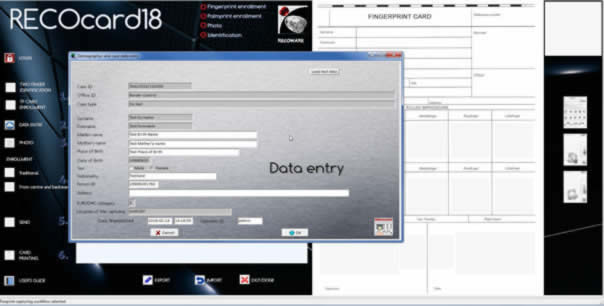

Case and demographic data entry

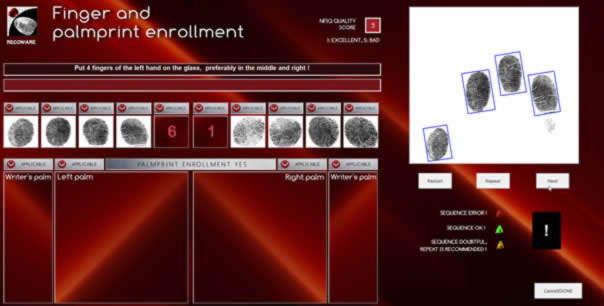

Right and left hand slap enrollment

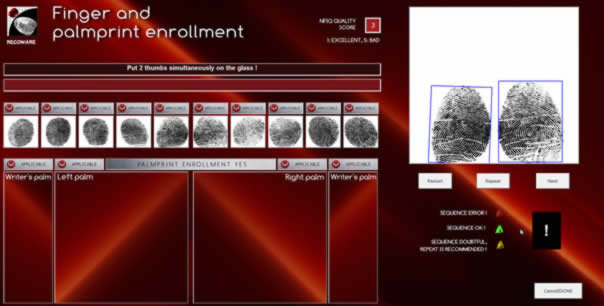

Two thumbs slap enrollment

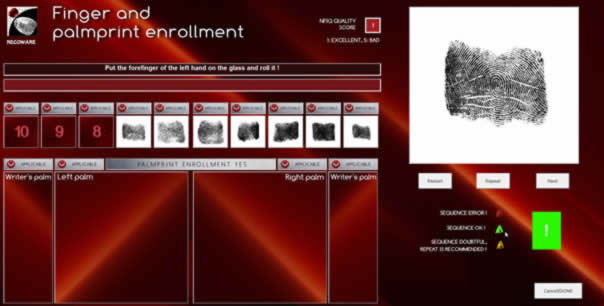

Rolled fingerprint capture with automatic direction detection

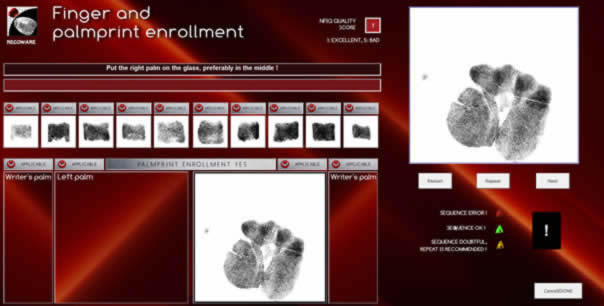

Right palm enrollment

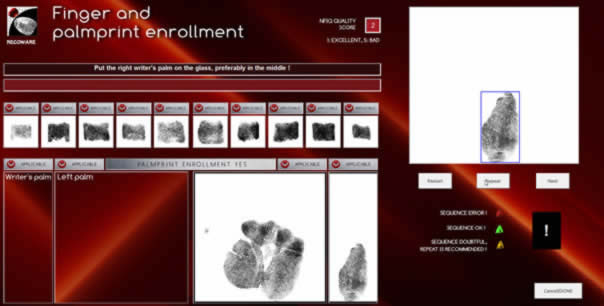

Right writer's palm enrollment

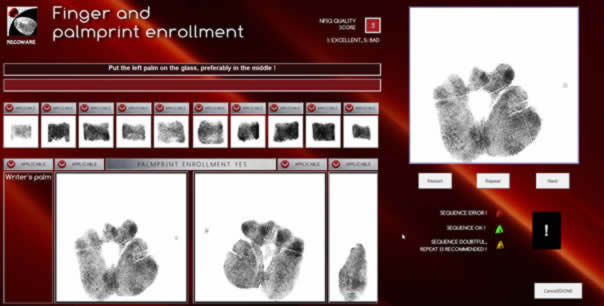

Left palm enrollment

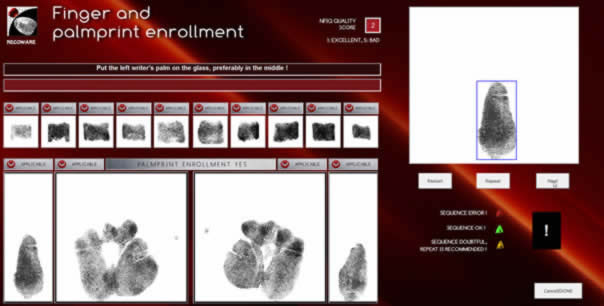

Left writer's palm enrollment

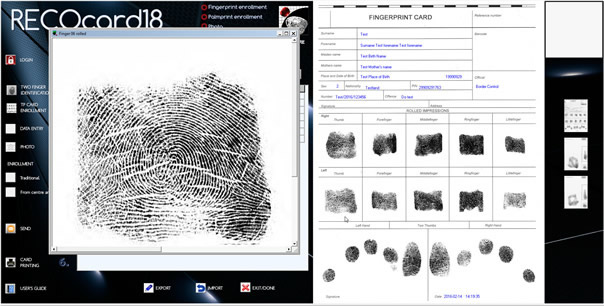

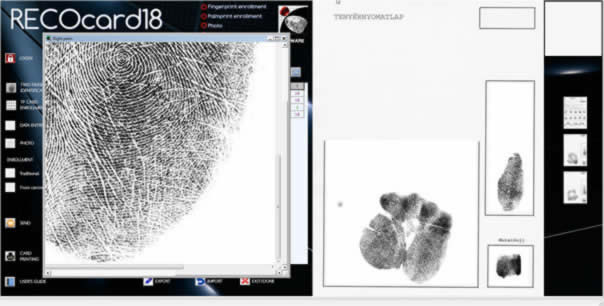

Magnified finger image


Magnified palm image

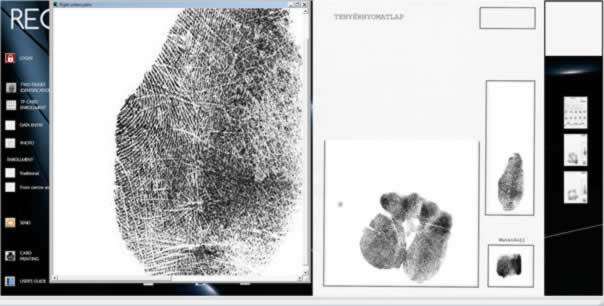

Magnified writer's palm

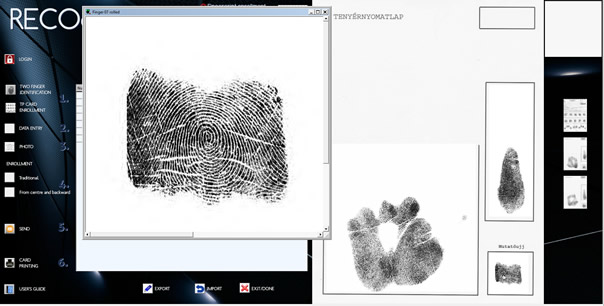

Index finger on the palmprint sheet

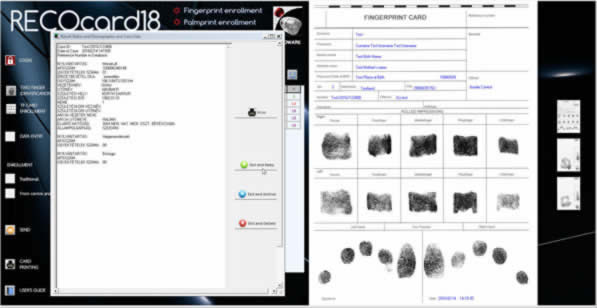

Display search result (case and demographic data if HIT)
